High Chrome Cast Cylpebs

【Introduction】:
Good quality used in Cement industries
【 Capacity 】:
50, 000Tons/Year
【Improvement】:
Diameter 8-60mm, High Hardness: 45-65HRC Low Breakage Rate ≤1% Density: 7.8-7.85g/cm3 Low wear rate

【Product Structure】

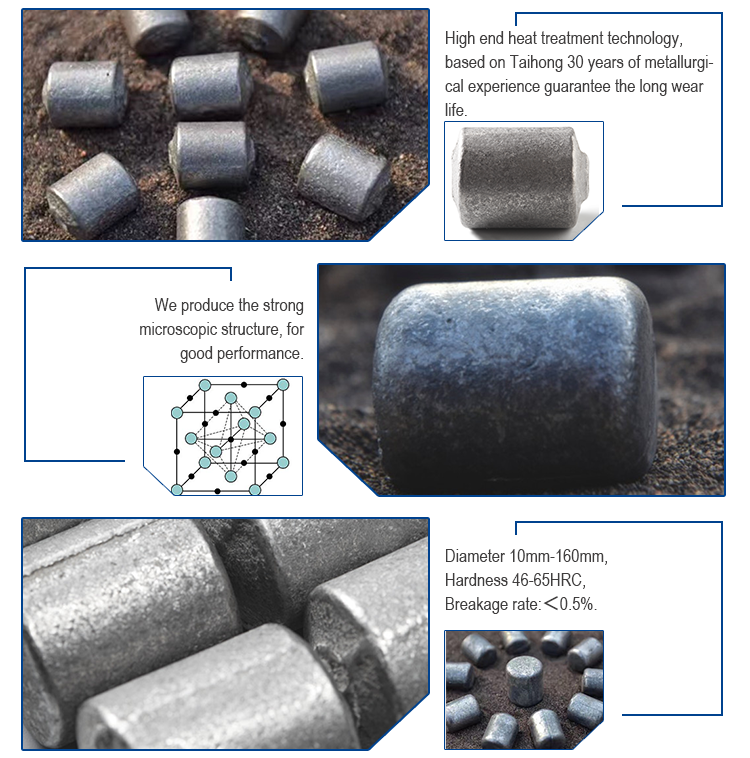

High Chrome Cast Cylpebs(图1)

【Technical Parameters】

Chemical Components
TypeChemical components

CSiMnCrMoCuPS
Low-Cr2.6-3.50.2-1.50.3-1.51-30-0.80-0.80.150.15
Medium-Cr2.3-3.30.2-1.50.5-2.23.8-8.50.4-1.30.2-1.00.120.12
High-Cr2.0-3.20.4-1.60.4-3.510-160.3-1.50.2-1.00.100.10
Specification
ΦxL(mm)ΦxL(mm)ΦxL(mm)
6x816x1835x40
8x1018x2040x45
10x1220x2545x50
12x1425x3050*60
14x1630x3560x70

Mechanical   Properties and Microstructure
TypeHardnessMicrostructure
Low-Cr45P+C
Medium-Cr>50M+C
High-Cr>60M+C
              P-Pearlite  C-Carbide    M-Martensite
